IntegrACrease

Creasing and straight rule production made easy

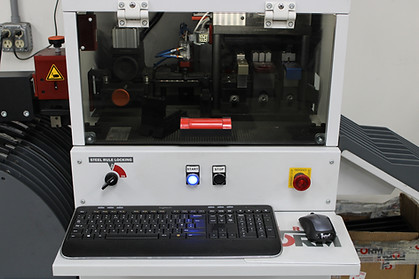

IntegraCrease is a centralized system to process cutting rule, creasing rule and laser crease rule for cutting dies in the packaging industry.

 IntegraCrease is a user friendly automated machine. When networked with other Serviform machines, the new user interface makes the manufacturing of creasing rule easier and faster than ever before. This unique capability will have a huge impact on your process.

Unique software features allow the operator to program the creasing rule remotely from various Serviform machines on the network. This way all the creasing rule and the straight cutting pieces can all be done one centralized punching machine including cut, crease and perforation rules. It is equipped with a motorized sorting unit to collect finished pieces in a fully automatic way. As with all Serviform machines,

the IntegraCrease is fully electric and power requirements are reduced to a bare minimum.

All the punching operations are performed by three “new generation” multiple tool cartridges. These cartridges allow for a number of operations (I.e. straight cutting, bridging, perforation, cut/crease, bending marks, dimpling, dovetail, clipped corners) increasing production speed and freeing up other bending machines to do just that, bend.

Serviform Machines operate on an innovative software system developed by Serviform. SDDS (Serviform Digital Diemaking System) was developed based on Windows OS, specifically to meet the needs of the diemaking industry. Main features of the software are ease of use, perfect interface ability with existing networks, and extreme flexibility as all the operations of the machine are electrically or pneumatically driven. All Serviform machines can be networked together to help improve process efficiencies. In addition, IntegraCrease machine control is now managed entirely by multiple industrial PLCs.

red background test-01.png

STANDARD FEATURES

BRIDGING

CLIPPED CORNERS
FOR STEEL COUNTERS

STRAIGHT CUT

OPTIONAL FEATURES

REVOLVER NICKS transparent_edited.jpg

REVOLVER NICKING

PERFORATION transparent_edited.jpg

PERFORATING RULE

Dovetail vector_edited_edited.jpg

DOVETAIL

SPECIAL BOTTOM CUT white background.png

SPECIAL BOTTOM CUT TO AVOID INTERFERANCE WITH SHIM TAPE

DIMPLING .png

RULE DIMPLING

CUT CREASE PHOTOSHOP_edited_edited_edited.jpg

CUT/CREASE RULE


SCRIBING

raduis cut.png

LASERCREASE

raduis cut.png

RADIUS CUT
